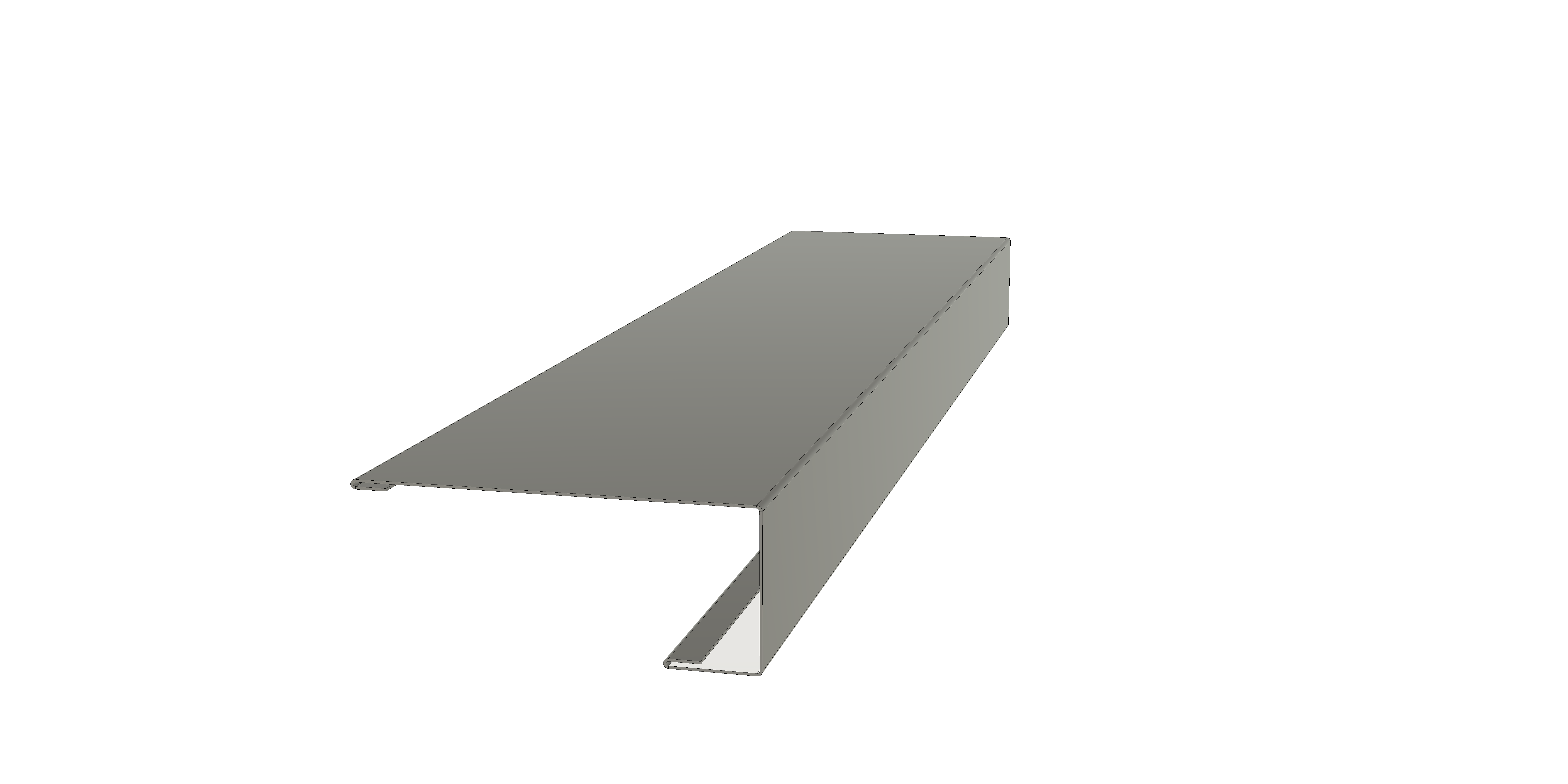

Side trim for finishing and protecting the side edge of roofs made of trapezoidal sheets. The design is adapted to the specific type of trapezoidal sheet and the design of the roof edge.
 |
 |

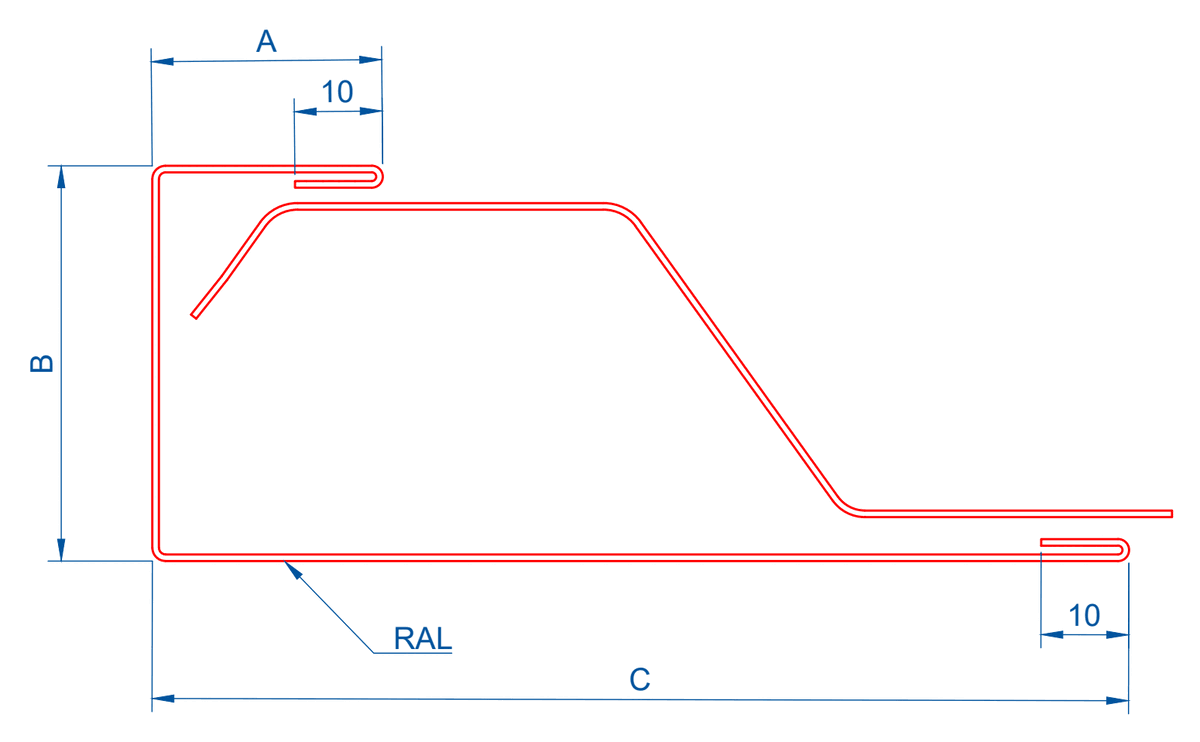

Drawing labels: „Úhel ohybu α“ = bending angle α; „RAL“ = coated (visible) side. Dimensions in mm.
Dimensional variants
| Variant | For profile | A [mm] | B [mm] | C [mm] |
|---|---|---|---|---|
| CB 15-1 | CB 35-207 | 30 | 38 | 100 |
| CB 15-2 | CB 40-160 | 35 | 43 | 110 |
| CB 15-3 | CB 45-333 | 35 | 48 | 100 |
| CB 15-4 | CB 50-260 | 45 | 53 | 180 |
| CB 15-5 | CB 55-250 | 45 | 58 | 180 |
| CB 15-6 | CB 60-235 | 45 | 63 | 180 |
Need a different size, angle or length? We manufacture to order according to your drawing or sketch.
Material and colours
Galvanised sheet up to 1.5 mm, pre-painted galvanised sheet up to 1.0 mm, aluminium 0.5–1.0 mm, stainless steel 0.5–0.8 mm. Pre-painted sheets in 12 RAL colours matching CB PROFIL trapezoidal sheets (standard 0.63 and 0.75 mm) and wood decor, other colours on request.
Production length: standard up to 4,000 mm, up to 6,500 mm on request.
