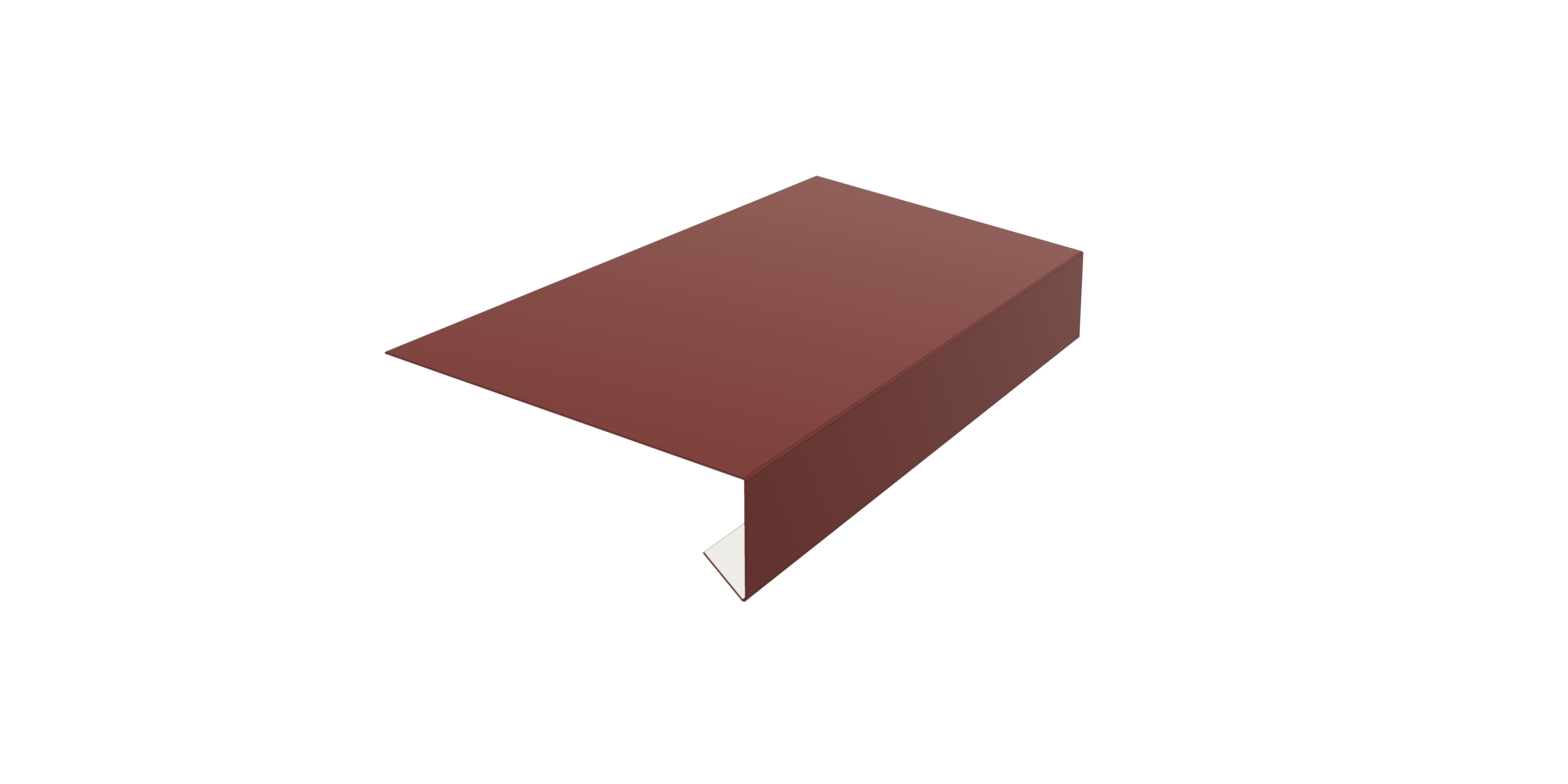

Eaves flashing for finishing the lower edge of the roof and draining water. The design is adapted to the specific type of roof cladding or sandwich panel.
 |
 |

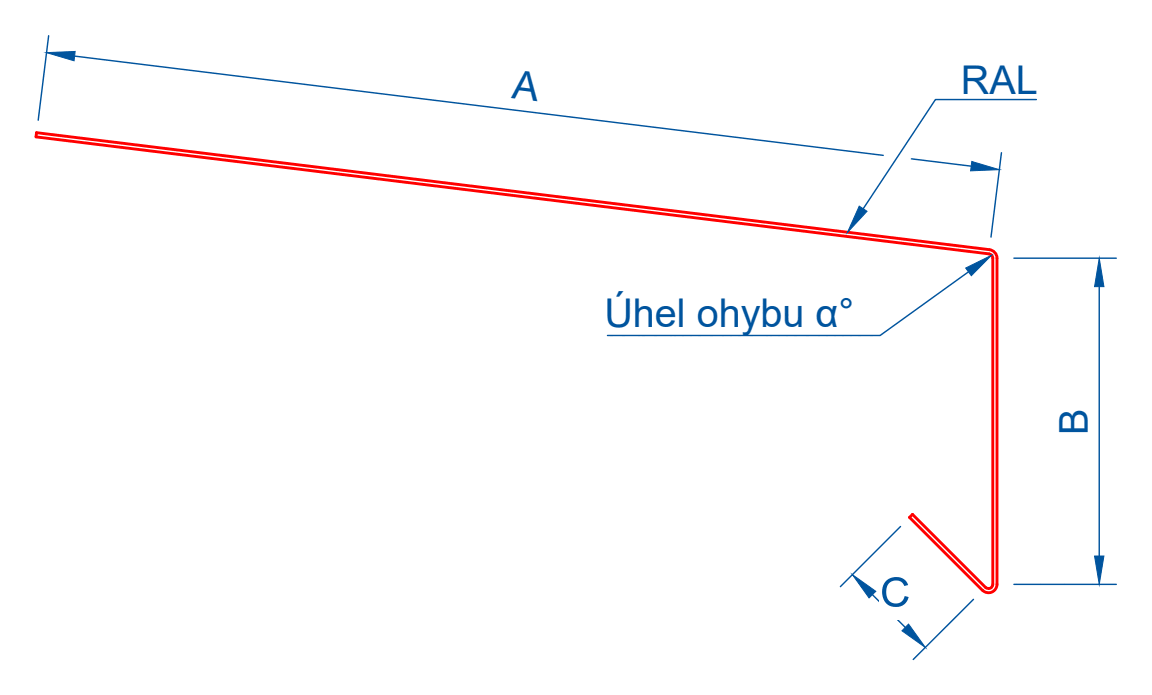

Drawing labels: „Úhel ohybu α“ = bending angle α; „RAL“ = coated (visible) side. Dimensions in mm.
Dimensional variants
| Variant | For profile | A [mm] | B [mm] | C [mm] | Bending angle α [°] |
|---|---|---|---|---|---|
| CB 08-1 | all profiles: CB 35-207, CB 40-160, CB 45-333, CB 50-260, CB 55-250, CB 60-235 | 170 | 60 | 20 | according to roof pitch |
| CB 08-2 | all profiles: CB 35-207, CB 40-160, CB 45-333, CB 50-260, CB 55-250, CB 60-235 | 200 | 80 | 30 | according to roof pitch |
| CB 08-3 | all profiles: CB 35-207, CB 40-160, CB 45-333, CB 50-260, CB 55-250, CB 60-235 | 250 | 80 | 40 | according to roof pitch |
Need a different size, angle or length? We manufacture to order according to your drawing or sketch.
Material and colours
Galvanised sheet up to 1.5 mm, pre-painted galvanised sheet up to 1.0 mm, aluminium 0.5–1.0 mm, stainless steel 0.5–0.8 mm. Pre-painted sheets in 12 RAL colours matching CB PROFIL trapezoidal sheets (standard 0.63 and 0.75 mm) and wood decor, other colours on request.
Production length: standard up to 4,000 mm, up to 6,500 mm on request.
