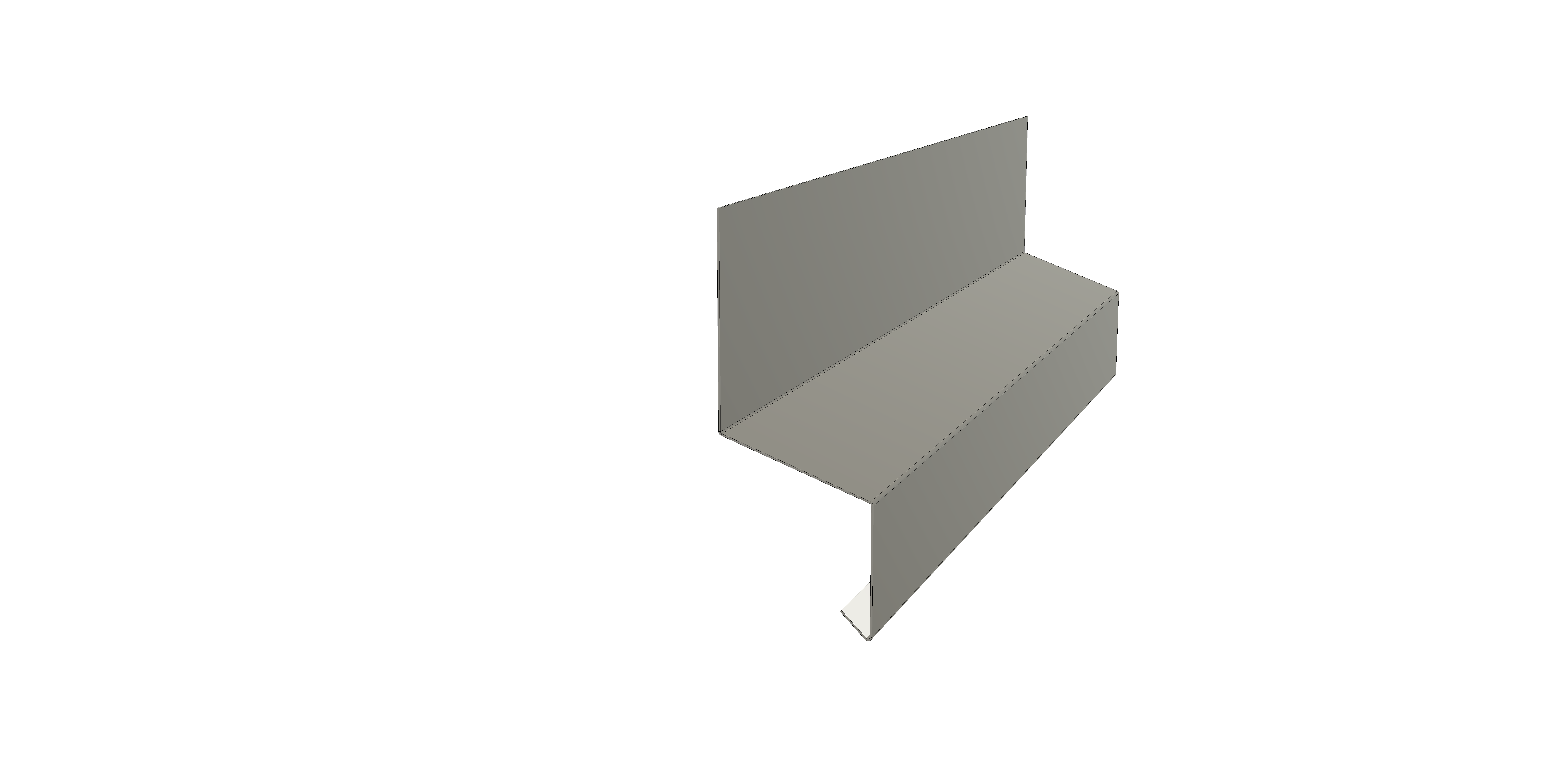

Base drip flashing for finishing and protecting the lower edge of the façade cladding and draining water. The design is adapted to the specific type of cladding, including sandwich panels.
 |
 |

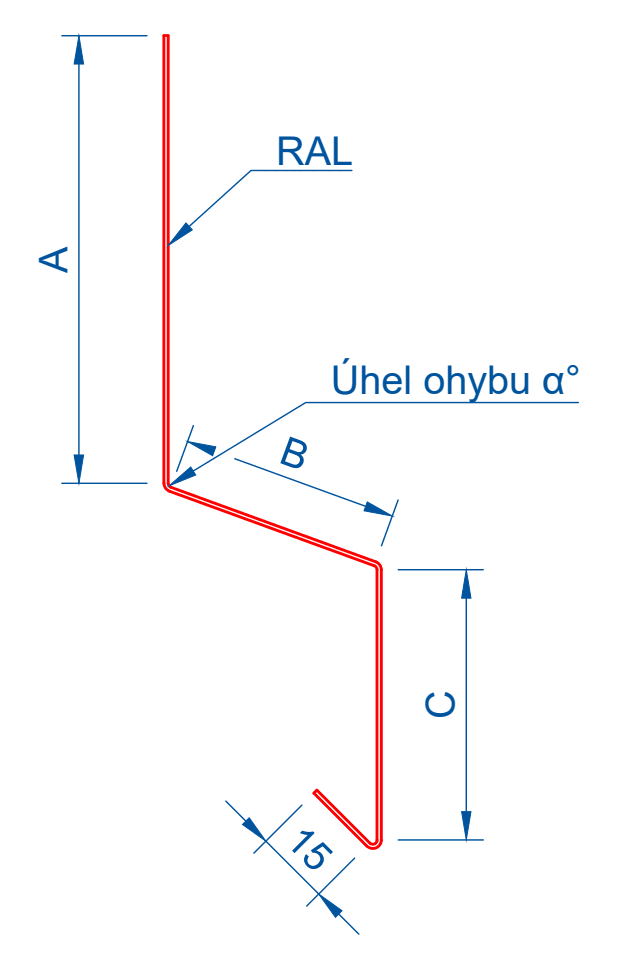

Drawing labels: „Úhel ohybu α“ = bending angle α; „RAL“ = coated (visible) side. Dimensions in mm.
Dimensional variants
| Variant | For profile | A [mm] | B [mm] | C [mm] | Bending angle α [°] |
|---|---|---|---|---|---|
| CB 12-1 | CB 8-88 | 50 | 30 | 40 | on request |
| CB 12-2 | CB 20-190 | 50 | 40 | 40 | on request |
| CB 12-3 | CB 35-207 | 60 | 55 | 50 | on request |
| CB 12-4 | CB 40-160 | 60 | 60 | 50 | on request |
| CB 12-5 | CB 45-333 | 70 | 65 | 50 | on request |
| CB 12-6 | CB 50-260 | 70 | 70 | 60 | on request |
| CB 12-7 | CB 55-250 | 80 | 75 | 60 | on request |
| CB 12-8 | CB 60-235 | 80 | 80 | 60 | on request |
Need a different size, angle or length? We manufacture to order according to your drawing or sketch.
Material and colours
Galvanised sheet up to 1.5 mm, pre-painted galvanised sheet up to 1.0 mm, aluminium 0.5–1.0 mm, stainless steel 0.5–0.8 mm. Pre-painted sheets in 12 RAL colours matching CB PROFIL trapezoidal sheets (standard 0.63 and 0.75 mm) and wood decor, other colours on request.
Production length: standard up to 4,000 mm, up to 6,500 mm on request.
