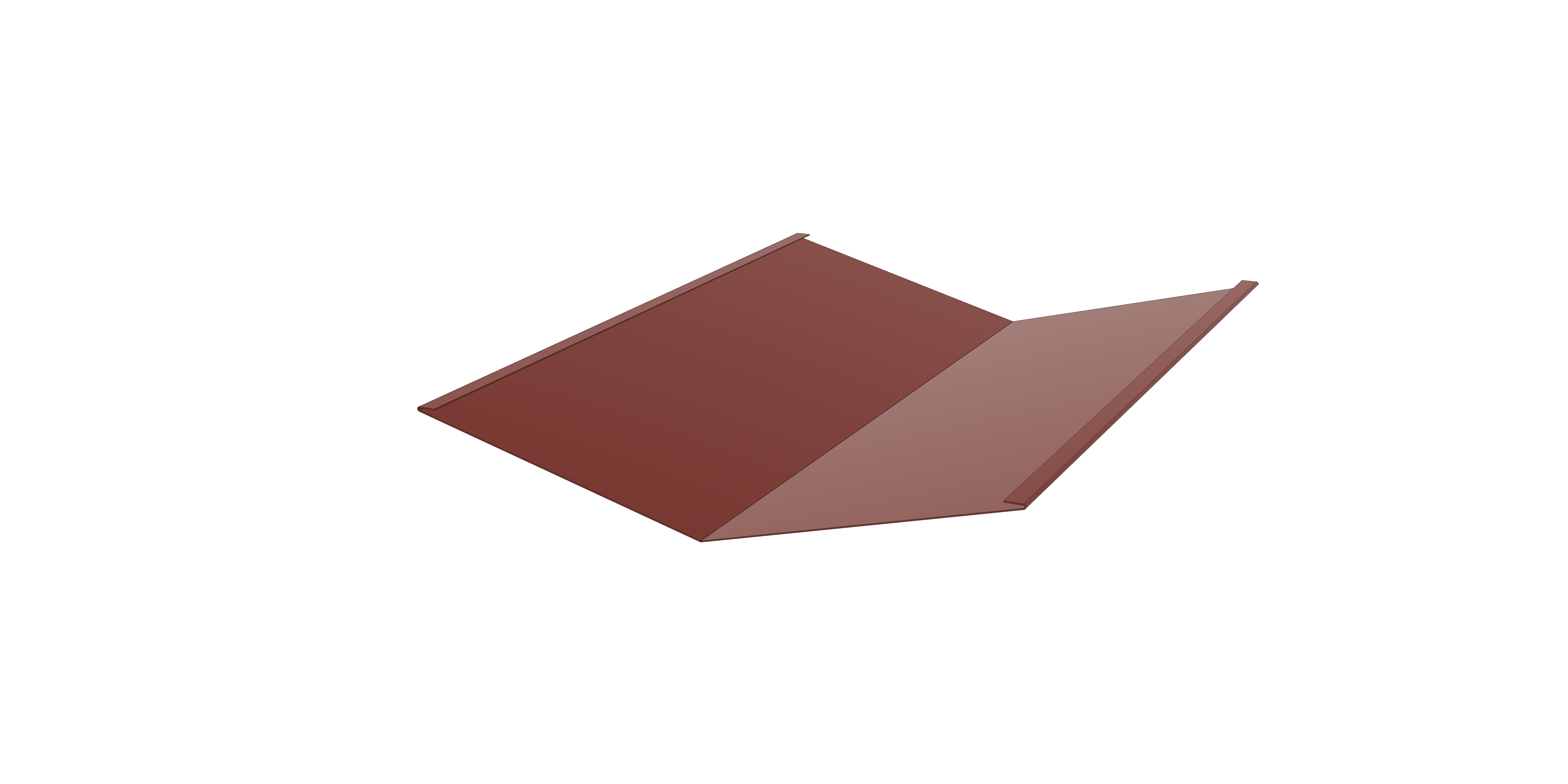

Valley flashing for covering the roof valley and draining water from the adjoining roof planes. The design is adapted to the specific type of roof cladding.
 |
 |

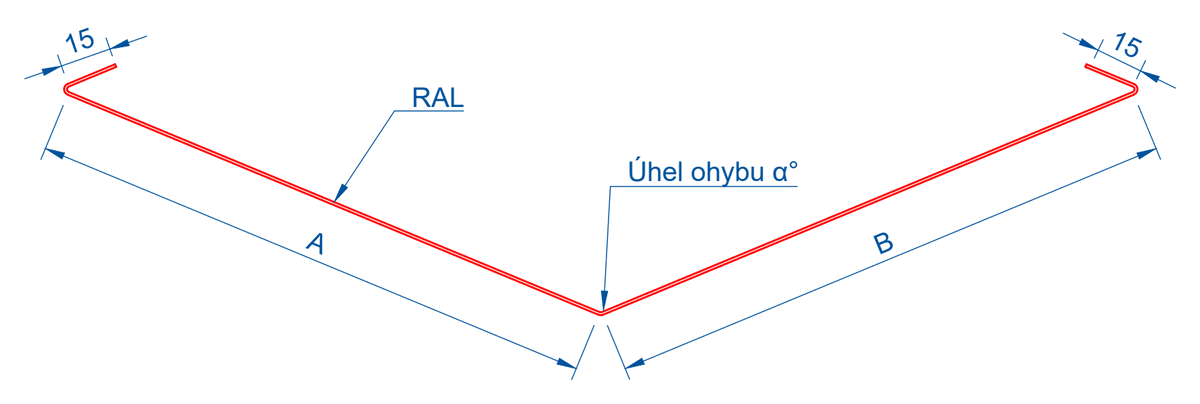

Drawing labels: „Úhel ohybu α“ = bending angle α; „RAL“ = coated (visible) side. Dimensions in mm.
Dimensional variants
| Variant | A [mm] | B [mm] | Bending angle α [°] |
|---|---|---|---|
| CB 09-1 | 193 | 193 | according to roof pitch |
| CB 09-2 | 235 | 235 | according to roof pitch |
| CB 09-3 | 297 | 297 | according to roof pitch |
| CB 09-4 | 360 | 360 | according to roof pitch |
Need a different size, angle or length? We manufacture to order according to your drawing or sketch.
Material and colours
Galvanised sheet up to 1.5 mm, pre-painted galvanised sheet up to 1.0 mm, aluminium 0.5–1.0 mm, stainless steel 0.5–0.8 mm. Pre-painted sheets in 12 RAL colours matching CB PROFIL trapezoidal sheets (standard 0.63 and 0.75 mm) and wood decor, other colours on request.
Production length: standard up to 4,000 mm, up to 6,500 mm on request.
