We offer a wide range of flashing profiles, reinforcement plates, tooth plates and thin-walled profiles for longitudinal and transverse trapezoidal sheet metal termination - quality and precision for your projects

EDGING PROFILES

ELEVATION PLATES

TOOTH SCALES

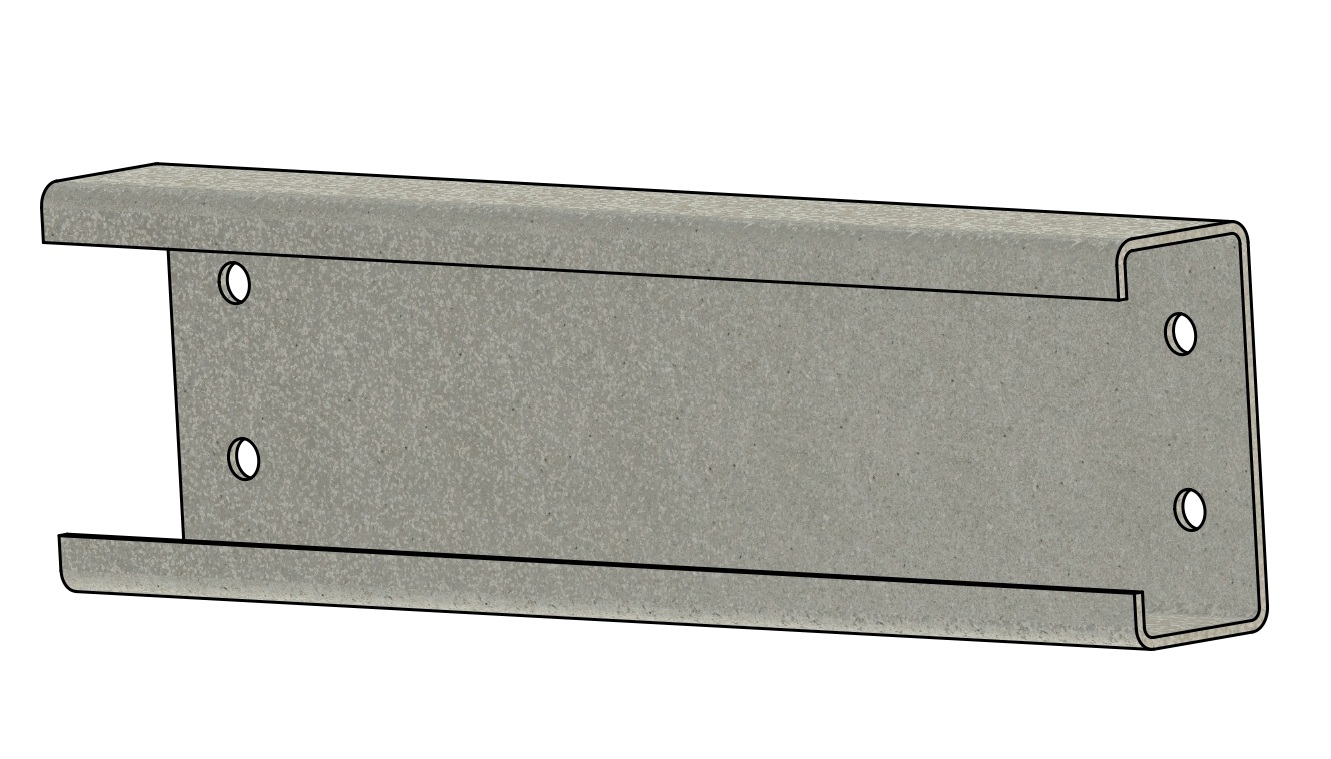

THIN-WALLED PROFILES

Longitudinal/Transverse

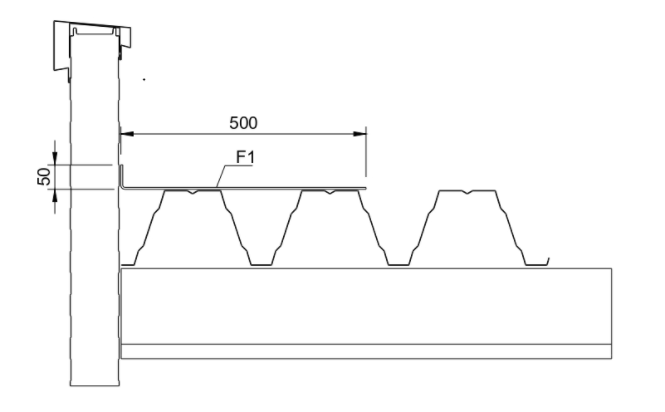

termination of trapezoidal sheet metal



Cutting and formatting

Straight sheets are cut and formatted on TRUMPF CNC hydraulic plate shears.

precise cutting is ensured by CNC automatic adjustment of cutting length and cutting clearance
pneumatic support of cut-offs to prevent overhang of the sheet metal
hydraulic holders to ensure clamping along the entire length of the sheet during cutting without crushing the material
possibility of single and continuous cutting and cutting to the line
  TRUMPF TrumaCut T670
length of cut 7 050 mm
minimum sheet thickness 0,40 mm
maximum sheet thicknesses
(strength up to 450/mm2)		 galvanized sheets up to thickness 4,00 mm
Black sheets cold and hot rolled to a thickness of 4,00 mm
stainless steel sheets up to thickness 2,00 mm
aluminium sheets up to thickness 4,00 mm



Bending

We bend on two hydraulic CNC bending presses:



  TrumaBend S 255-65 TrumaBend S 135-40
pressing force: 2 250 kN 1 350 kN
lift: 400 mm 250 mm
bending length: 6 500 mm 4 000 mm
maximum thickness of the bent sheet metal: stainless steel: 2,00 mm, stell, aluminium: 4,00 mm
CNC bombing to eliminate ram deflection in depending on the pressing force ensures the same bending angle in the entire length of the bend
special tool for folding the edge reinforcement of the sheet metal edging profiles
TRUMPF self-centring interchangeable split bending tools - laser-hardened work surface (62-63 HRC) guarantee high quality bending accuracy and repeatability for sheet metal thicknesses from 0.50 mm to 4.00 mm
special tool for reinforcing the edge of the sheet metal up to a thickness of 1.5 mm
special tools for closed bends up to 60 mm



Punching

Material for production
Materials up to a length of 6500 mm, a width of 1500 mm and a thickness of 4 mm are punched with a set of tools of various shapes on the machine Trumpf TruPunch 5000:


Trumpf TruPunch 5000

We use painted galvanized steel sheets for production:

Sight side coated with 25my or 15my polyester coating (supplied with a protective removable film as standard)

Reverse side protective varnish 7-10 my

 Material 2



Combination of colours and thicknesses - width 1 250 mm:

barva název barvy tloušťky
S320GD+Z275 pozink Z275 0,50 mm; 0,63 mm; 0,75 mm; 0,88 mm; 1,00 mm; 1,25 mm; 1,50 mm; 2,00 mm
RAL 9002 šedobílá 0,50 mm; 0,63 mm; 0,75 mm; 0,88 mm; 1,00 mm
RAL 9002/9002 šedobílá oboustranně 0,75 mm
RAL 9010 bílá 0,63 mm; 0,75 mm
RAL 3009 červenohnědá 0,50 mm; 0,63 mm; 0,75 mm
RAL 9006 bílý hliník 0,63 mm; 0,75 mm; 0,88 mm
RAL 9007 šedý hliník 0,75 mm
RAL 7035 světle šedá 0,75 mm
RAL 6011 rezedová zelená 0,75 mm
RAL 5010 enziánová modrá 0,75 mm
RAL 3000 ohnivě červená 0,75 mm
RAL 1015 slonová kost 0,75 mm
RAL 7016 antracit 0,75 mm





Kombinace barev a tlouštěk - šíře 1 500 mm:

barva název barvy tloušťky
S320GD+Z275 pozink Z275 1,50 mm
25 my RAL 9002 šedobílá 0,75 mm
15my RAL 902 šedobílá 0,75 mm; 0,88 mm; 1,00 mm; 1,13 mm 1,25 mm; 1,50 mm;
15my RAL 901 šedobílá 0,75 mm; 0,88 mm; 1,00 mm; 1,13 mm 1,25 mm; 1,50 mm;





Ocelové pozinkované plechy šíře 1 250 / 1 500 mm:

barva název barvy tloušťky délka max.
S320GD+Z275 pozink Z275 3,00 mm; 4,00 mm 6 500 mm

Contact

Petr Tišer

Specialist for edged profiles and supporting squared profiles
