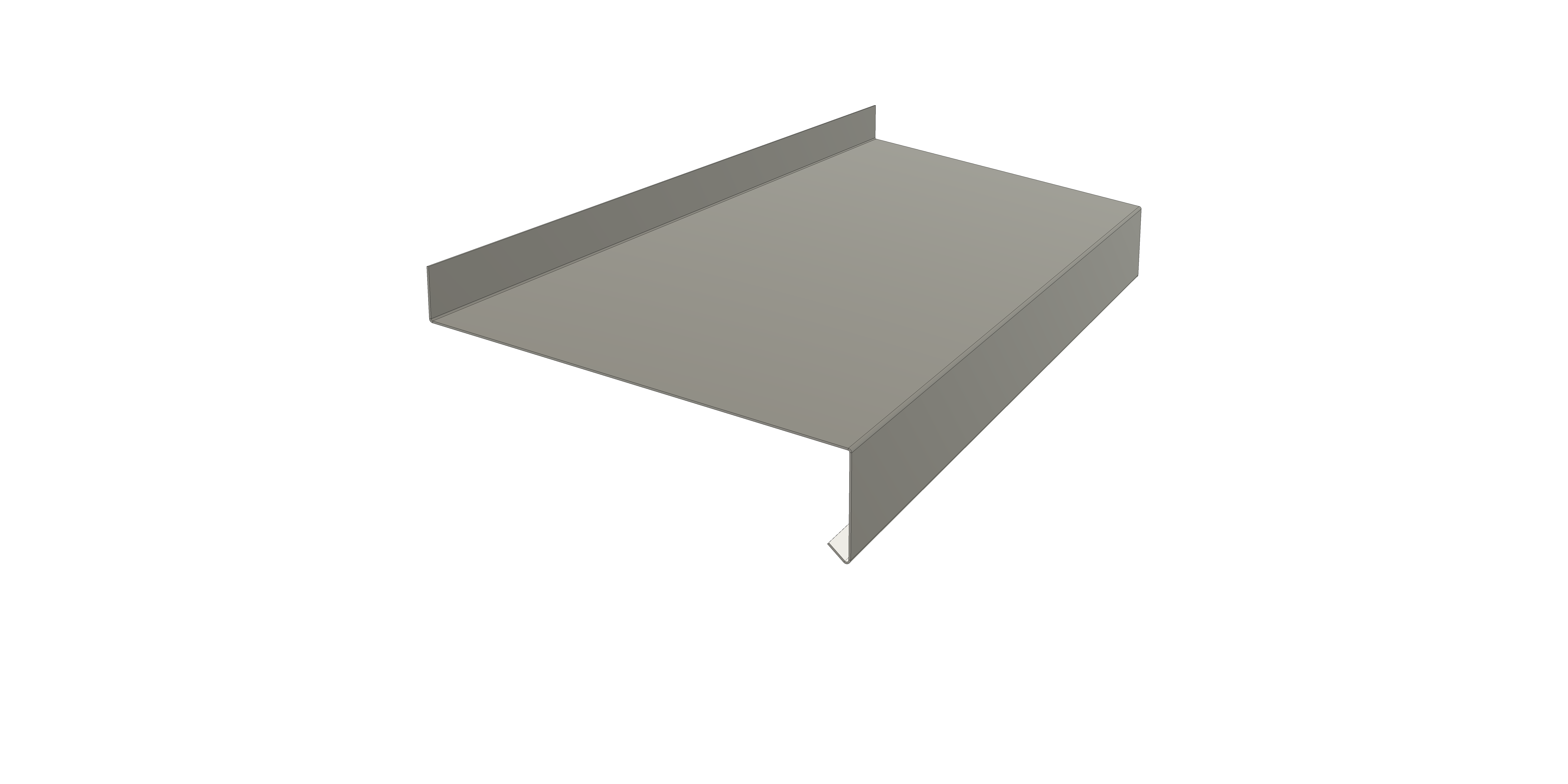

Sill flashing for covering and protecting the top edge of the sill and draining water. The design is adapted to the specific type of cladding, including sandwich panels.
 |
 |

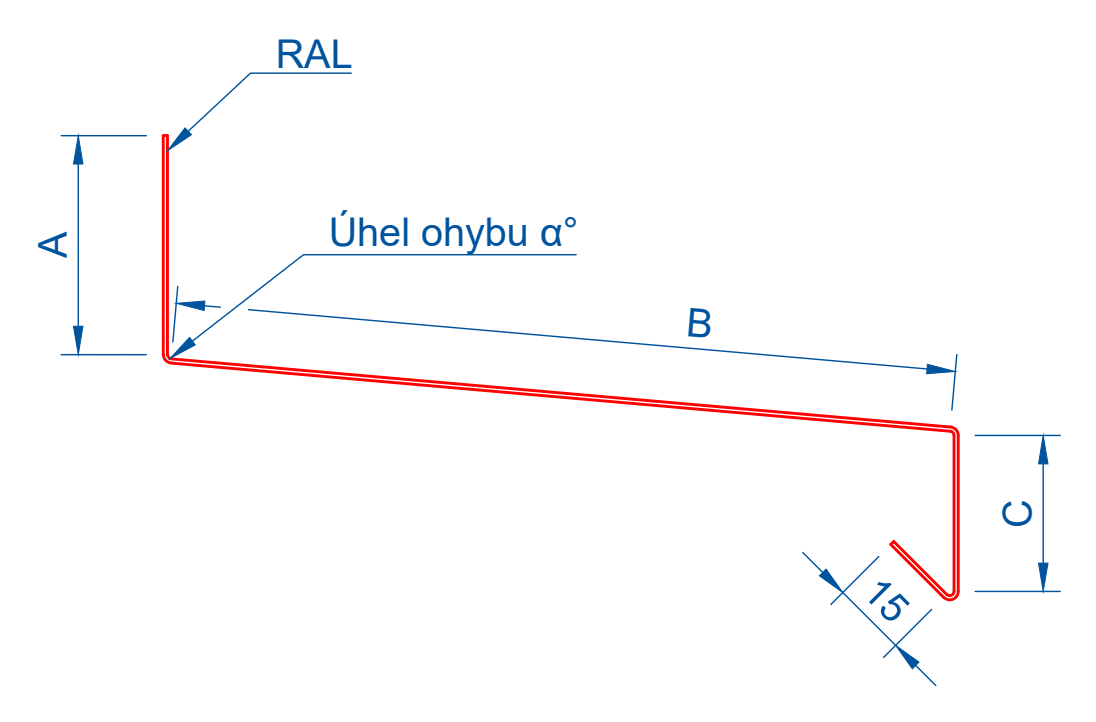

Drawing labels: „Úhel ohybu α“ = bending angle α; „RAL“ = coated (visible) side. Dimensions in mm.
Dimensional variants
| Variant | A [mm] | B [mm] | C [mm] | Bending angle α [°] |
|---|---|---|---|---|
| CB 13-1 | 20 | 50–150 | 40 | on request |
| CB 13-2 | 20 | 160–200 | 40 | on request |
| CB 13-3 | 20 | 210–250 | 40 | on request |
| CB 13-4 | 25 | 260–300 | 40 | on request |
| CB 13-5 | 25 | 310–350 | 50 | on request |
Need a different size, angle or length? We manufacture to order according to your drawing or sketch.
Material and colours
Galvanised sheet up to 1.5 mm, pre-painted galvanised sheet up to 1.0 mm, aluminium 0.5–1.0 mm, stainless steel 0.5–0.8 mm. Pre-painted sheets in 12 RAL colours matching CB PROFIL trapezoidal sheets (standard 0.63 and 0.75 mm) and wood decor, other colours on request.
Production length: standard up to 4,000 mm, up to 6,500 mm on request.
