Reinforcement plates are used to reinforce openings in trapezoidal sheets up to 300 × 300 mm.
The plates have a punched opening for the penetration and fixing holes for attachment with self-drilling screws. The opening size D can be chosen as required.
 | Parameters| Thickness t | 1.5–4.0 mm | | Shape and dimensions | according to sheet type and drawing | | Material | S320GD+Z275 (EN 10346), certificate 3.1 on request; other grades, e.g. S350GD, on individual request | | Punching | yes, according to drawing |
Request a quote for Reinforcement plate for openings → |
Shape and dimensions
- S – plate width
- H – plate height
- D – opening size
- t – sheet thickness
Examples for CB PROFIL trapezoidal sheets

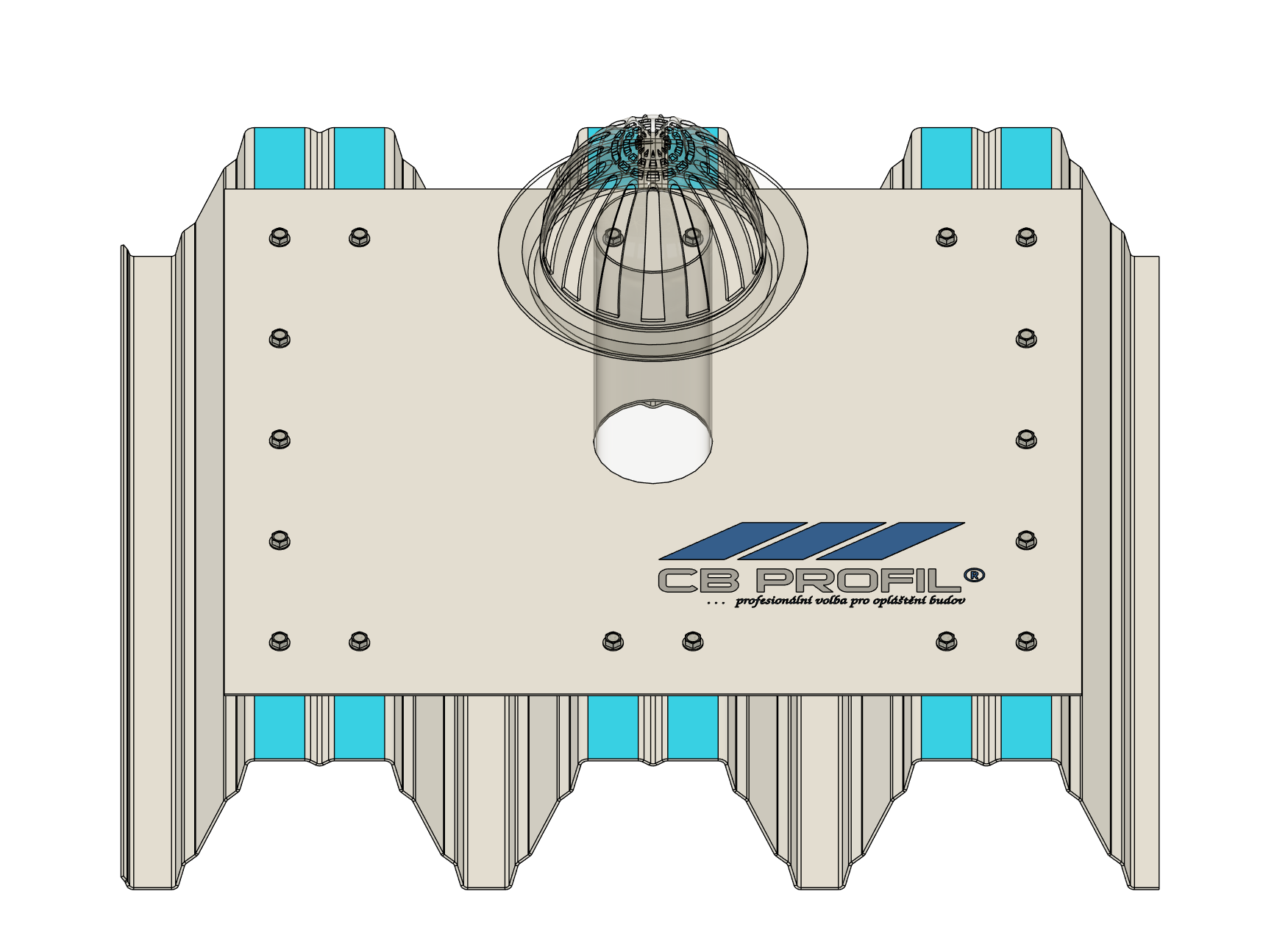

| Reinforcement plate with opening for CB 160/250 |

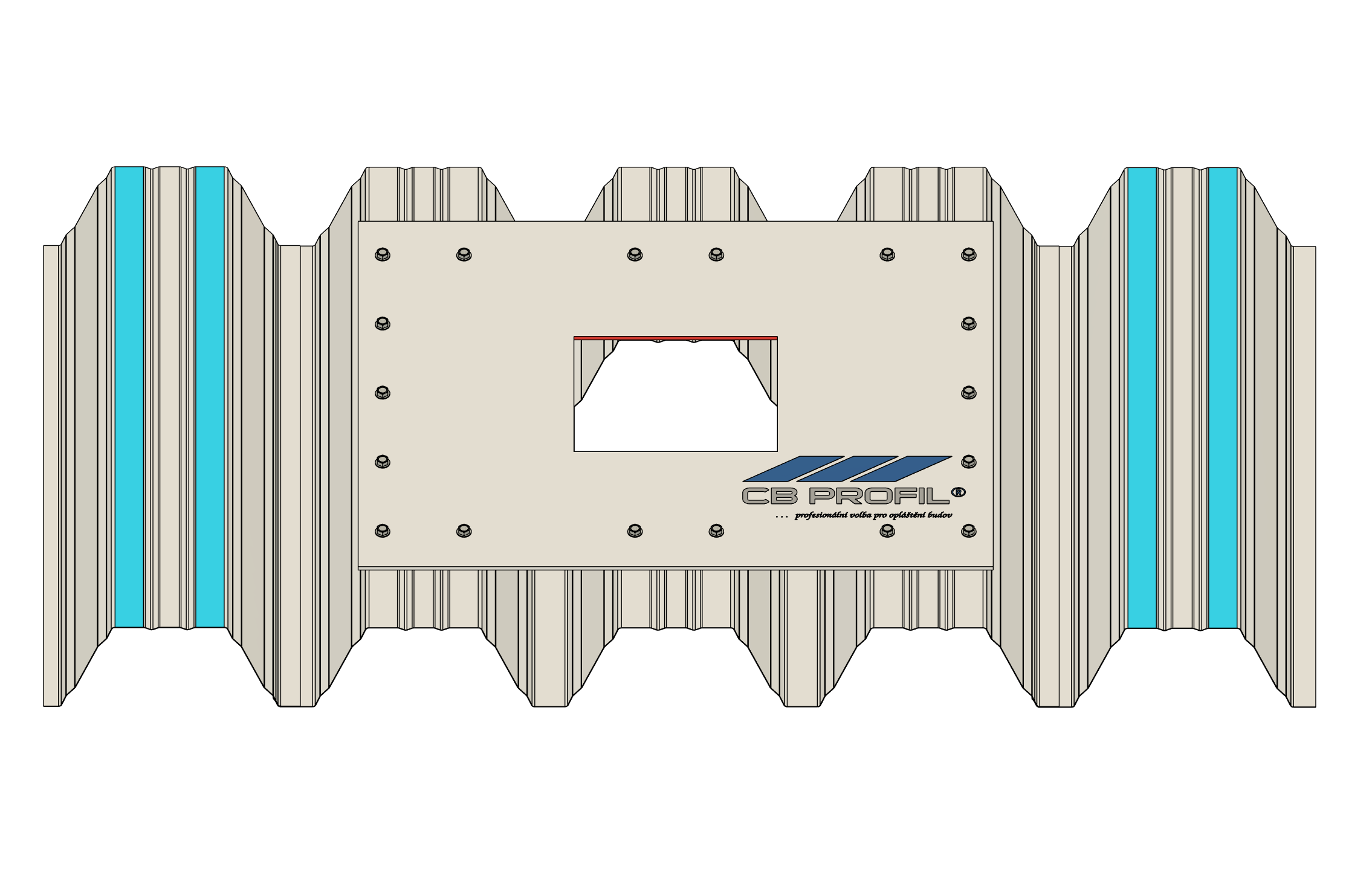

Reinforcement plate with opening for CB 150/280 |

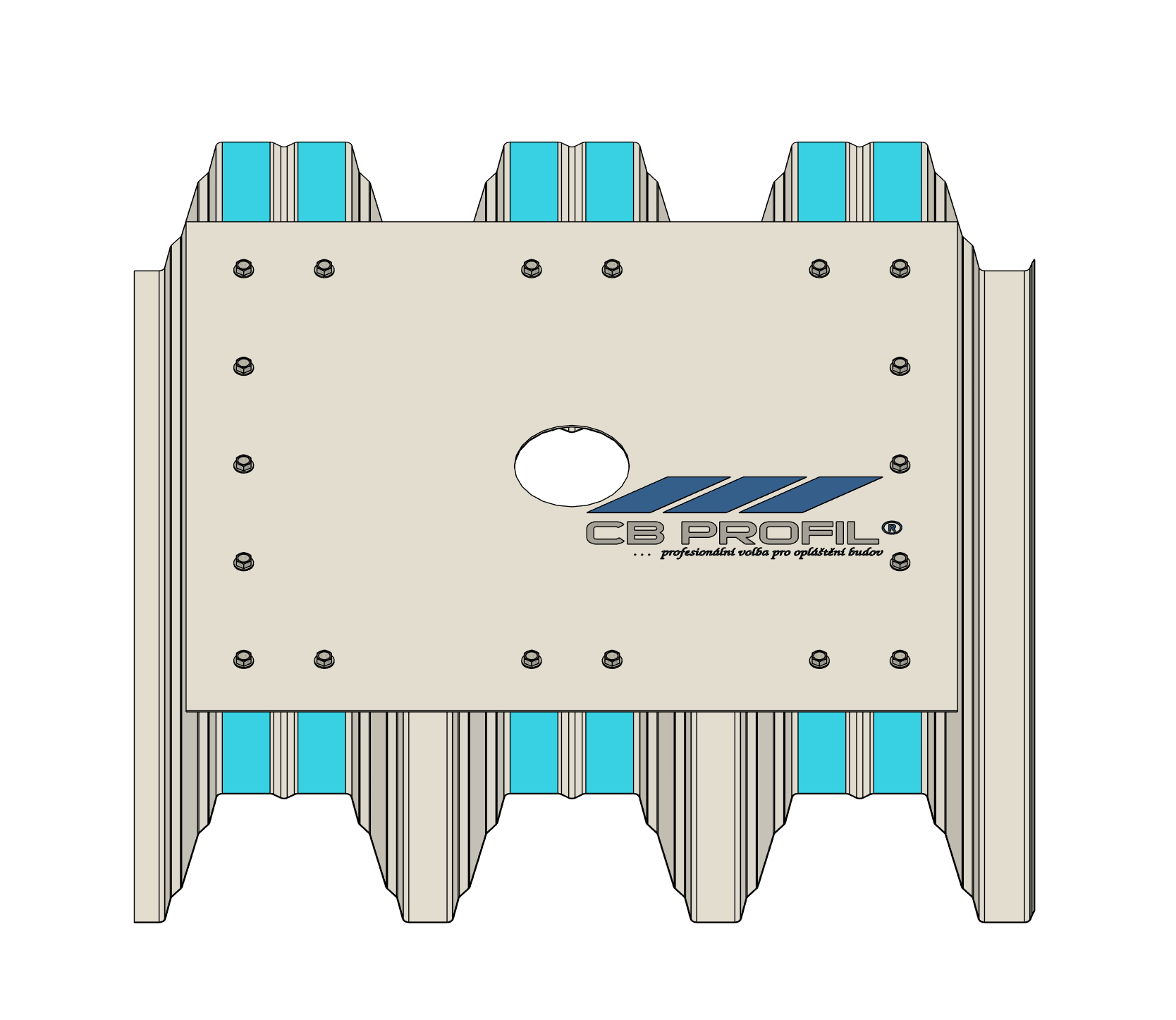

Reinforcement plate with opening for CB 150/290 |

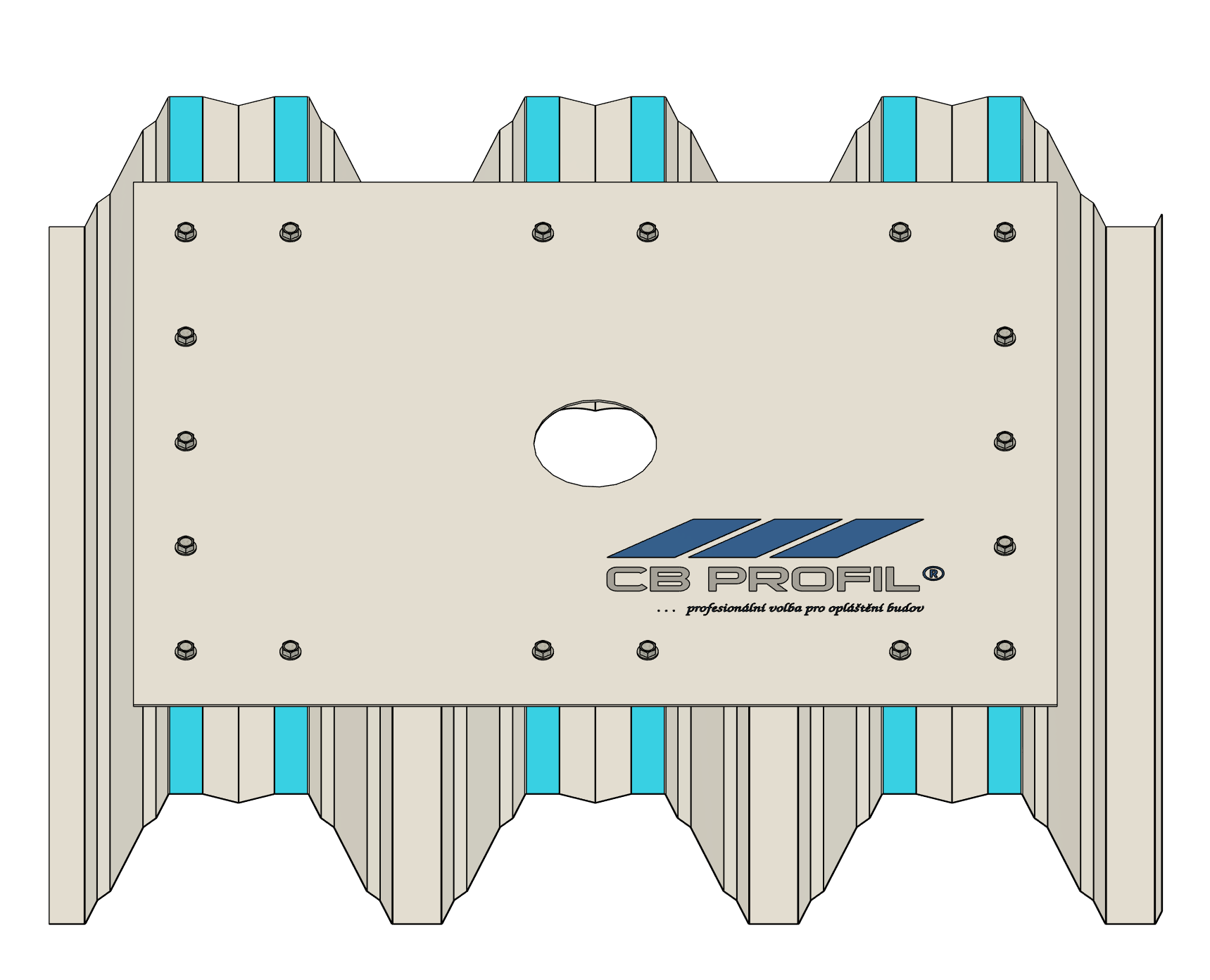

Reinforcement plate with opening for CB 135/310 |
 |
 |
 |
 |
Other solutions for openings
